low voltage circuit breaker DZ47 miniature circuit breaker DZ47 leakage circuit breaker leakage protector.

Working principle of product

A small circuit breaker is the principle that the bimetal bending is directed regularly with the increase of temperature. When the circuit breaker is closed in normal working condition, the internal bimetallic sheet is heated by a certain current, and the thermal expansion coefficient of the two bimetalles is different. It is not enough to release the release mechanism. When the line appears general overload, when the overload current is reached, the bimetallic sheet has a larger bending angle and a lever in the release mechanism, which is enough to push off the release mechanism, and from the small circuit breaker, it plays the role of super load protection. The size of the bimetallic strip is different from that of the small circuit breaker.

Product features

1. installation and use of convenient novice can also be easy to install

2. safety insulation of fire retardant and high flame retardant material

3. high quality connection terminal

Product specification

Product description

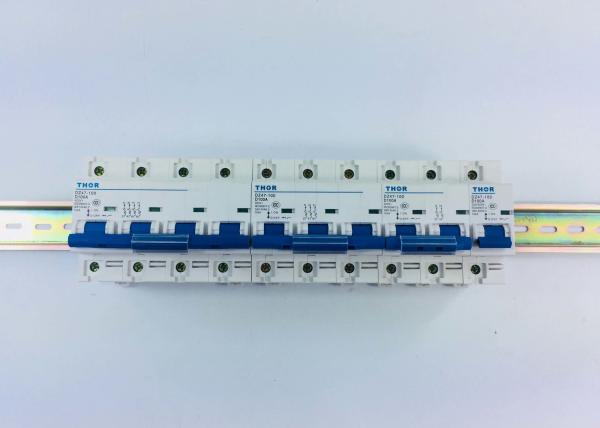

DZ47 series small circuit breaker is a kind of limited current high breaking circuit breaker with double protection of overload and short circuit. It is suitable for AC 50Hz/60Hz, rated voltage 230V/400V, rated current to 63A and below, as circuit overload and short circuit protection.

Use of attention

1. ambient air temperature does not exceed the ceiling 40 C, the lower limit of not less than -25 DEG C, and the average temperature within 24 hours of not more than +35 DEG C.

2. altitude: the altitude of the installation site is no more than 2000m.

3. the relative humidity of the atmosphere is less than 50% when ambient air temperature is + 40 C, and the relative humidity can be allowed at lower temperature.

Company profile

Thor is all about protecting against the damaging effects of power transients. It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products – completed by unrivaled customer service and technical support.

Product packaging:Carton packing

Transportation method

2. Trains, ships, aircraft transport

Thor is all about protecting against the damaging effects of power transients. It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products – completed by unrivaled customer service and technical support.

Incorporated in 2006, Zhejiang Thor Electric Co., Ltd has built everything to offer a wide range of innovative and reliable surge protection solutions and products.

Thor is following the international quality system standards, is ISO 9001 certified and our technical standards are in line with GB18802.1-2011/IEC61643-1.

All types and classes of our lightning and surge arresters 20KA~200KA(8/20μS) and 15KA~50KA(10/350μS) are tested and pass all the requirements based on their class.

Thor has been designing new products to meet the RoHS directive since 2006. Thor’s ongoing commitment to RoHS compliance includes continuing efforts to reduce the presence of hazardous substances in the design and manufacture of a growing number of popular products.

Zhejiang Thor Electric Co., Ltd is committed to meeting the requirements of the European Union’s Waste Electrical and Electronic Equipment (WEEE) directive. This directive requires producers of electrical and electronic equipment to finance the take-back for re-use or recycling of their products placed on the EU market after 2005.
