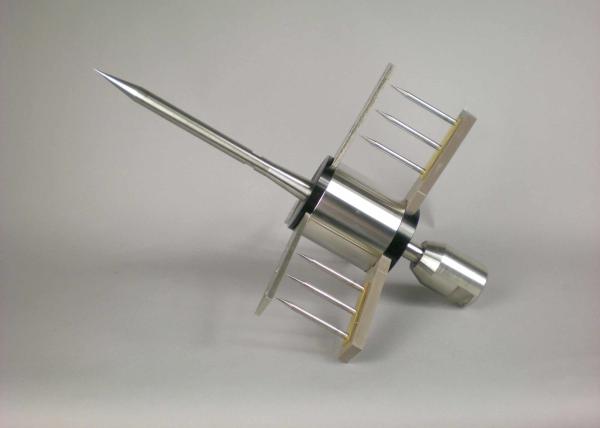

Product introduction
the lightning rod is the lightning protection measures taken by
Torre Electric Co., Ltd., which is independently developed and
manufactured against lightning hazards. The lead discharge,
impedance current limiting, air gap discharge and other integrated
technology can produce advance pilot channel, improve the effect of
flash, reduce discharge voltage and change the discharge process of
lightning current. The lightning wave form is broadened, the wave
head is gentle, and the amplitude is reduced, so as to extend the
protection range. To avoid the phenomenon of "side attack" and
"shielding failure", and effectively suppress the harm caused by
ground potential counterattack, it is an ideal device to prevent
direct lightning strikes.
Working principle of product
in thunderstorm weather, when charged clouds appear over high
buildings, the lightning rod and the top of the tall building are
all induced by a large amount of charge. Because the needle of the
lightning rod is sharp, the most charge is always gathered at the
tip of the conductor when electrostatic induction. In this way, the
lightning rod congregates most of the charge. The lightning rod
also forms a capacitor with the charged clouds, which is relatively
small because the two pole of the capacitor is small and the
capacitance is very small, that is to say, it can hold very little
charge. When it charges more clouds, the air between the lightning
rod and the cloud layer can easily be breakdown and become
conductor. In this way, the charged cloud layer and the lightning
rod form the path, and the lightning rod is grounded, the lightning
rod can import the charge on the cloud layer into the earth, so
that it does not pose a danger to the high-rise building and
ensures its safety.
Product specification
| Model | Specifications | With flange height M | Texture of material | working temperature |
TRSB
| 3.1 | 1.2
1.5
1.8
The highest 20m can be done |
Stainless steel
|
-40℃ ～ +80℃
|
| 3.3 |
| 4.3 |
| 5.3 |
| 6. |
Product features
1. the pure physical structure lightning rod has no electronic
devices and no aging.
2. to reduce the lightning current amplitude and steepness
3. beautiful appearance and no rust, strong antioxidant capacity
Use of attention
1. the general grounding wire should be buried in the ground 1-3
meters deep
2. the lightning arrester lanes are fixed on the preset
prefabricated base.
3. the lightning arrester lanes are fixed on the preset
prefabricated base.
Company profile
Thor is all about protecting against the damaging effects of power
transients. It is our goal and mission to connect our customer
challenges with high-quality, right-priced solutions and products –
completed by unrivaled customer service and technical support.
All types and classes of our lightning and surge arresters
20KA~200KA(8/20μS) and 15KA~50KA(10/350μS) are tested and pass all
the requirements based on their class.
