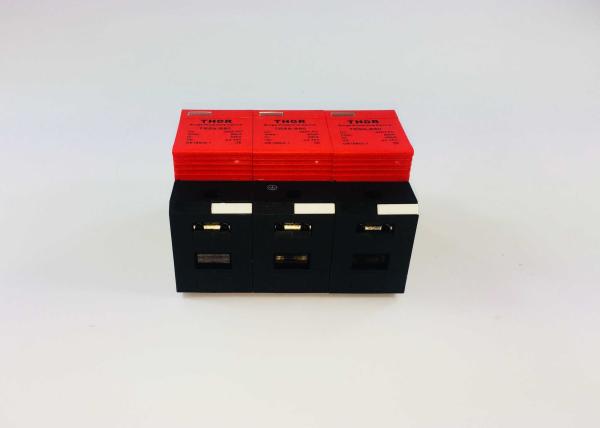

TRS9-B80 type surge surge protector, 40KA80KA series lightning
protection module.
Product introduction
Surge protector is the lightning protection measures taken by
Zhejiang toer Electric Co., Ltd. for the electrical system. It
mainly plays the role of protecting the line from lightning
protection and overvoltage protection.
The circuit protection is made up of a powerful diode solid state
discharge tube; basic and fine protection is based on automatic
fault protection device technology. In thermal overload, the device
moves the two ends of the original lightning protection together,
thus causing the damage of the surge.
Product specification
| Model | | TRS9-B80 | TRS9-B100 | TRS9-B120 | TRS9-150 |
| Rated Operating Voitage | UC | 275 | 275 | 275 | 275 |
| Voltage protective level | Up(KV)≤ | 1.7 | 2.1 | 2.35 | 2.8 |
| Max discharge current | Imax(8/20μS) | 80 | 100 | 120 | 150 |
Nominal discharge current
| In(8/20μS) | 40 | 60 | 80 | 100 |
| Ressponse time | NS | <25 |
| Lndication of invalidation | Aging invalidation:green Normal,red:Invaldation |
| Operating condition | Temp:-40℃~+70℃ |
| RH≤95%(25℃) |
| Sea level elevation≤3km |
Remote signal function
| Can also picking |
| Remarks | Other max continuous operating voltage can be customize |
Product features
1. low output residual pressure to further ensure safety
2. traffic flow to further improve safety
3. using the latest arc extinguishing technology to avoid fire
completely
4. built-in overheating and temperature control circuit breaker
Notice of product
1. when installing, pay attention to the cable entering and leaving
the surge protector. The cables should be separated to avoid the
two coupling of surge.
2. grounding lines should be short, thick and straight, so as to
reduce the influence of distributed inductors on the ability of
lightning electromagnetic pulse.
3. lightning arresters are connected in series between protected
equipment
Product Installation
With 35mm standard DIN-rail mounting, connecting copper stranded
conductor is 2.5~35mm²
At front of spd each pole must be setted protection---used fuse or
miniature circuit breaker lightning current SPD protection,after
SPD breakdown to short circuit protection.
SPD install on protected line(equipment) to the front and connected
to the supply line. A class products install in the building
home-entry line hold larger surge current total distribution box.
B, C class products most install on the floor distribution box, D
class products close to the front-end equipment that smaller surge
current, smaller residual voltage place.
Working principle of product
The lightning arrester can effectively protect the power equipment.
Once the abnormal voltage appears, the lightning arrester will play
a protective role. When the protected device is running under
normal working voltage, the arrester will not work, and it will be
regarded as a circuit for the ground.
Once the high voltage is present and the insulation of the
protected equipment is endangered, the lightning arrester acts
immediately and leads the high voltage impact current to the earth,
thus limiting the amplitude of the voltage and protecting the
insulation of the electrical equipment. When the overvoltage is
gone, the arrester is restored to its original state quickly, so
that the system can supply electricity normally.
The main function of the lightning arrester is to reduce the
voltage value of the protected equipment through the action of
parallel discharge gap or nonlinear resistance, and to reduce the
voltage value of the protected equipment, so as to protect the
power equipment.
